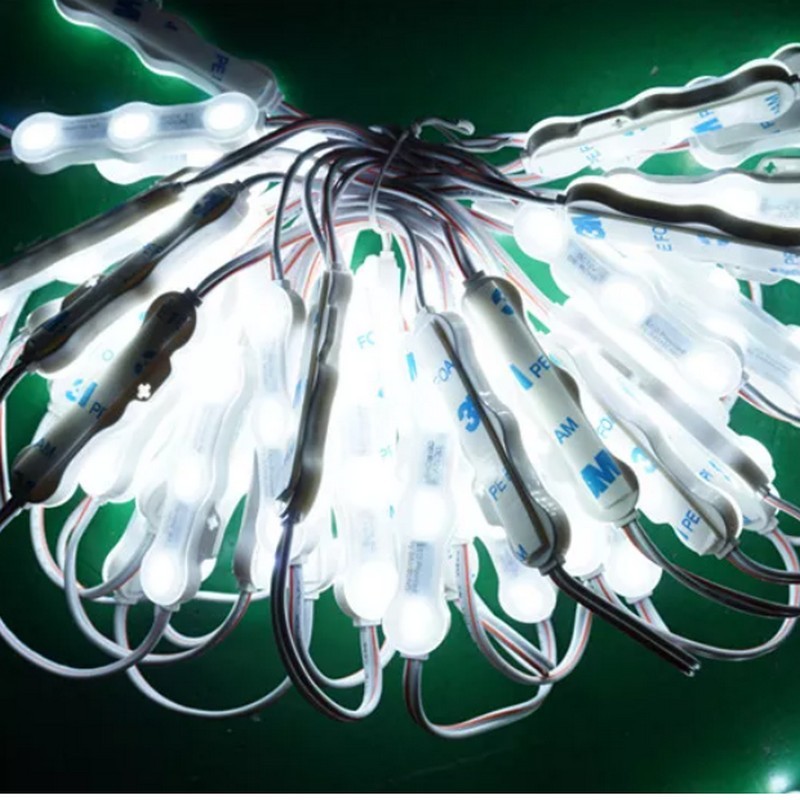

Product specification:
| Model No. | 3UM2835-B |
| LED type | SMD2835 |
| Power | 1.08W |
| IP Rating | IP67 |
| LED QTY | 3pcs |
| Size | 75*15mm |
| Working Life | 50000Hours |
| Material | PC+ABS |
| Input Voltage(V) | DC12V |
| Luminous Flux | 110lm |
| Application | Advertising Channel Letter and Light Box |
| HS Code | 9405409000 |
| Warranty | 3 years |
| Color | Warm white/White |
| Package | 50pcs/per string, 2000pcs per carton, 18KGS |
| Beam Angle | 120° |

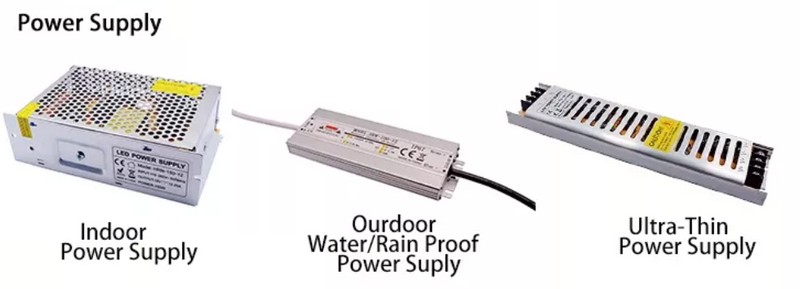

| Accessories | LED Controller, LED Driver,LED Aluminum Profile, LED Dimmer |

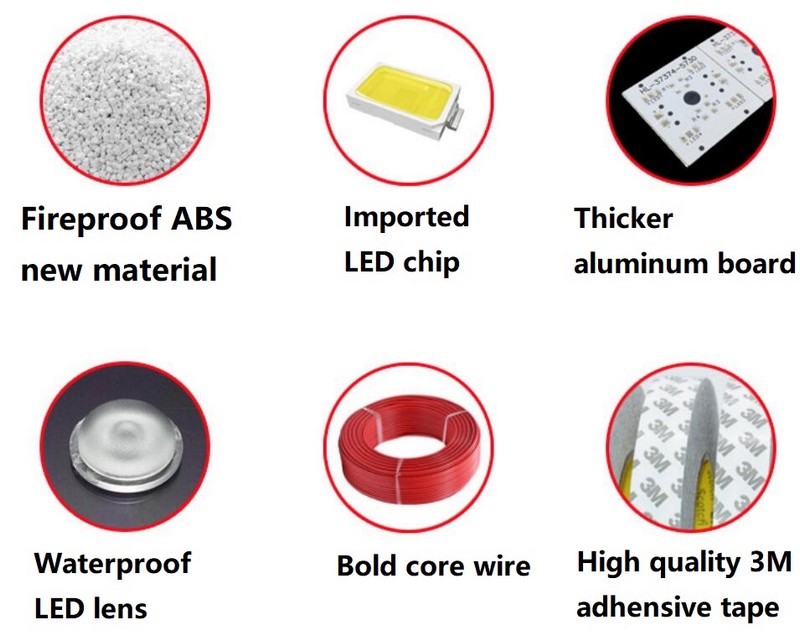

Feature:
1.SMD5730 / SMD2835 LED source designed with heat sink, well heat transfer.
2. Low power consumption, 80% energy saving and Friendly environment
3. High brightness, full range colors are available
4. Long lifespan: 50,000 hours normal
5. Maintenance free, low cost to use
6. Best sealed, IP65 with moisture-proof, water-proof,dust proof and impact resistance
7. Easy installation, be convenient to use in all display situation.
8. Double-sided 3M adhesive tape attached on the back of modules
9. Constant current driver ensuring full bunch in same brightness and working stably.
10. OEM/ODM accept.
11.Wide angle, 120 degree visual angle resulting better average brightness.
12. Whole unit formed in one-time injection molding. Best to be used for: LOGO lighting, Metro station signs, Airport light box, Back light source

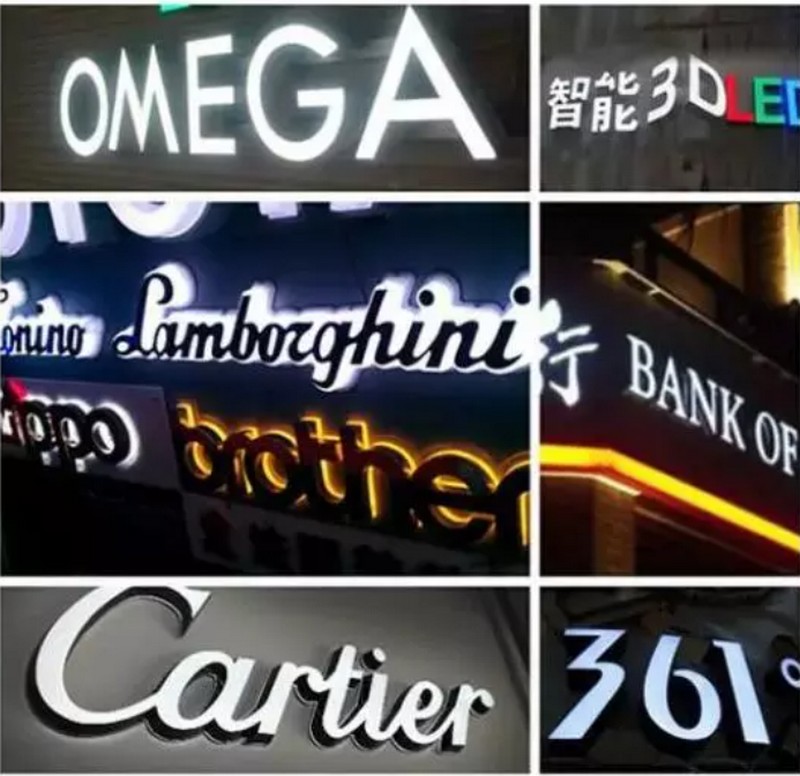

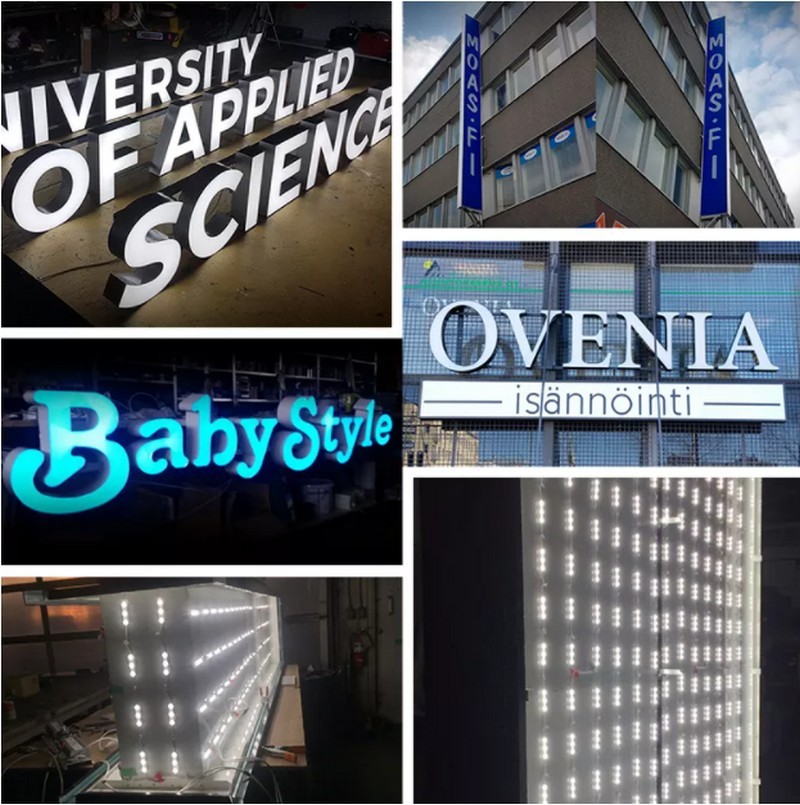

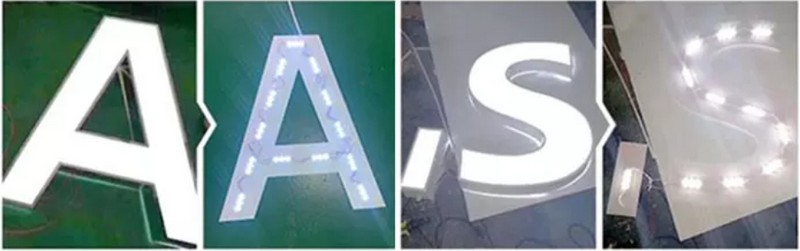

Application:
Used in Channel letter, Lightbox, Advertising signs depth from 8cm to 20cm., LED signage,Commercial signs, Decorative lights.

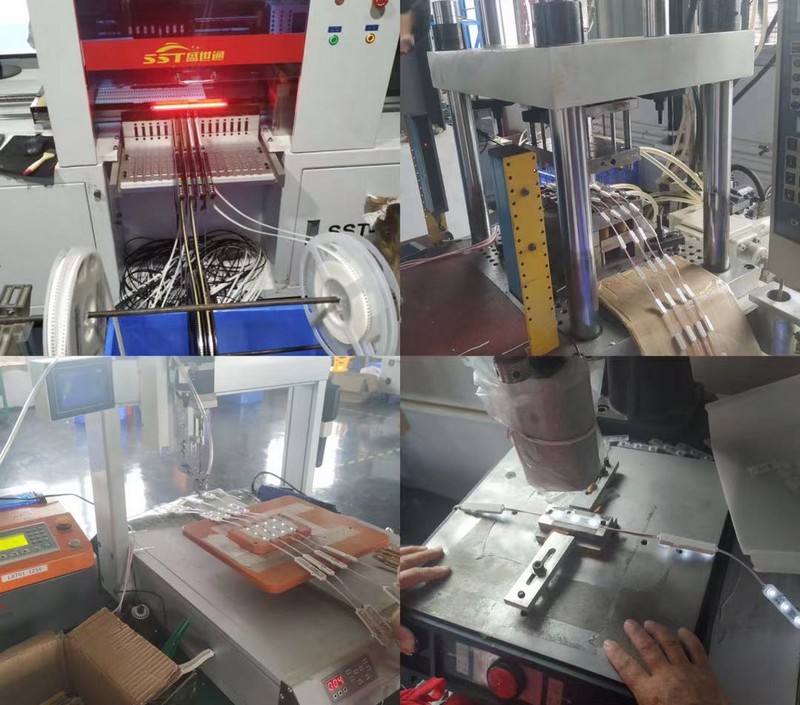

Our production line:

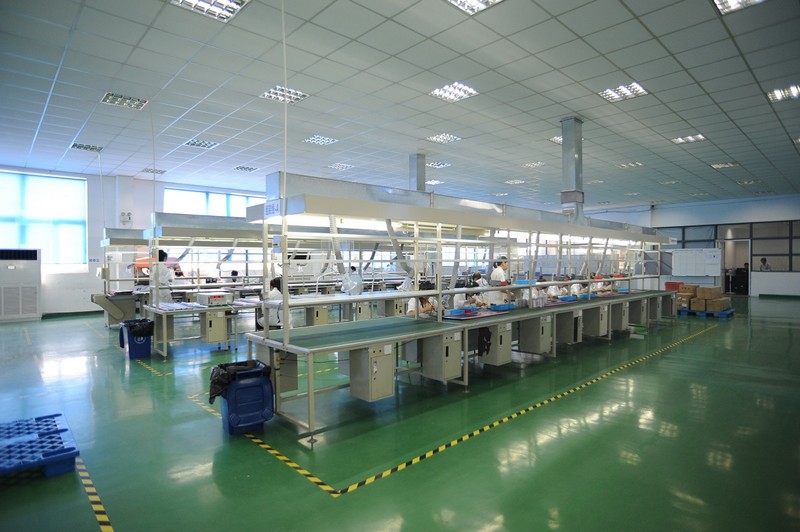

Workshop:

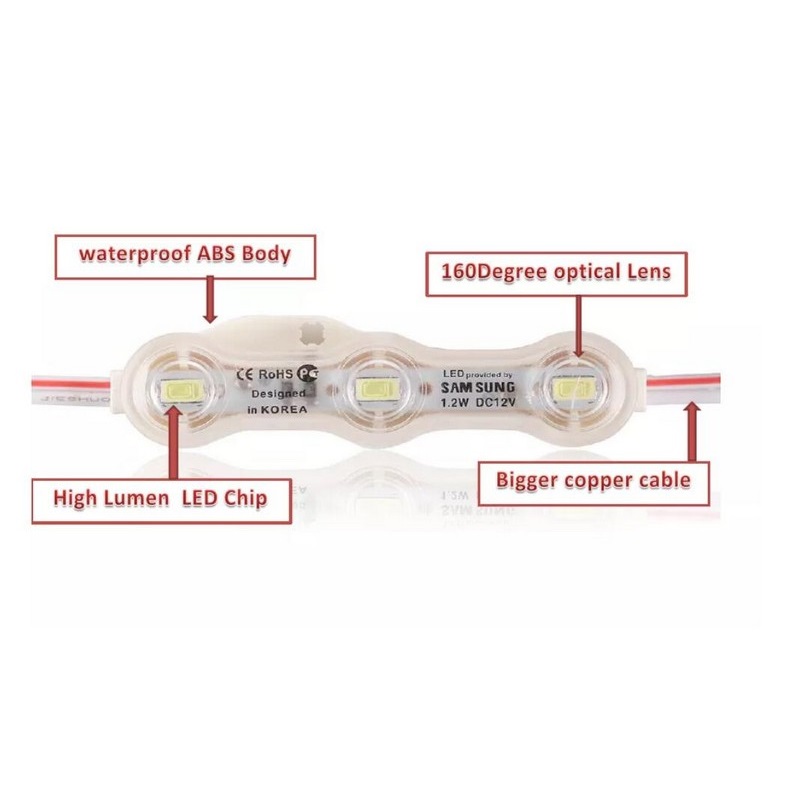

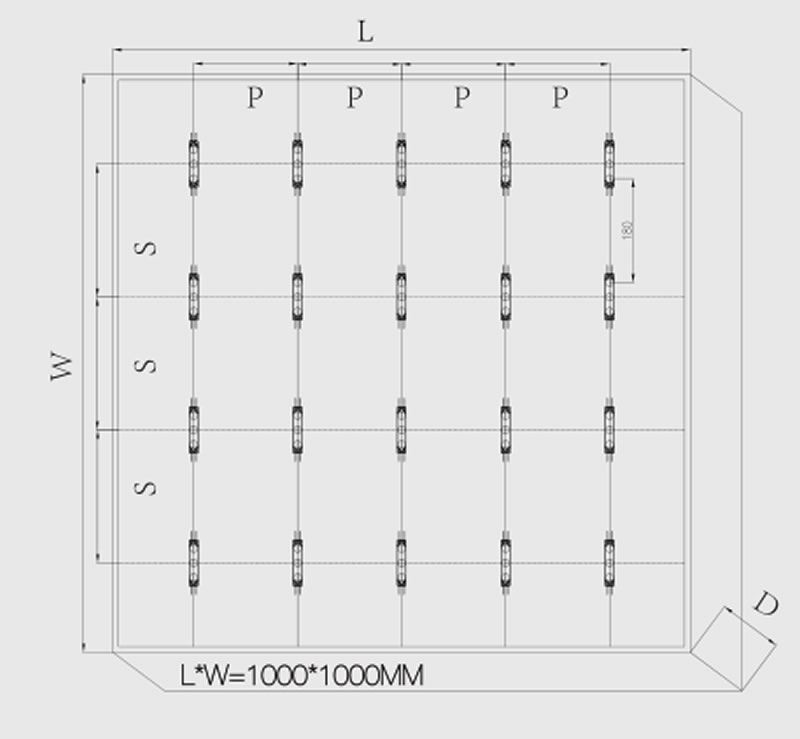

Layout:

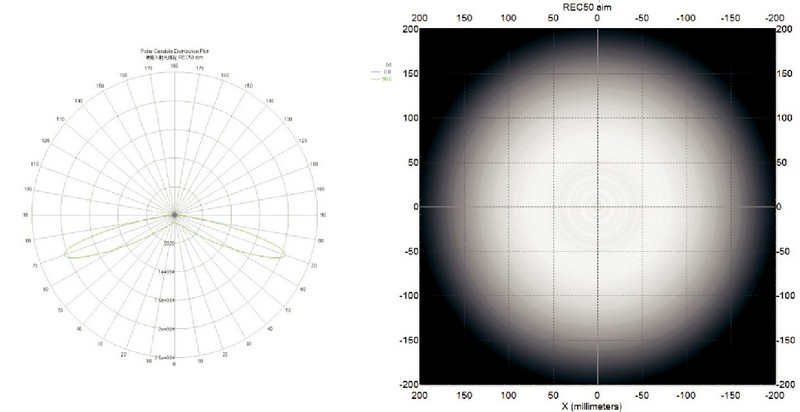

Light distribution:
Packing & Delivery:
