Mini Size Ultrasonic Injection 2835 Smd Samsung Epistar Led Module

Date: 2022-05-31

Picture:

1.Select and use outdoor 2835 smd led light source,
2.Products with low power consumption ,high brightness ,long life(>50,000 hours) ,maintenance-free.
3.The shell is made of injection molding technology, beautiful appearance ,good cooling effect
4.The production is made by injection machine,
5.IP67 waterproof rating up above.
6.Apply in 3cm,8cm,10cm,and 15cm or more depth outdoor light box.
7.1m2 can install 50-60 units of 3leds module, 40-50 units of 4leds module.

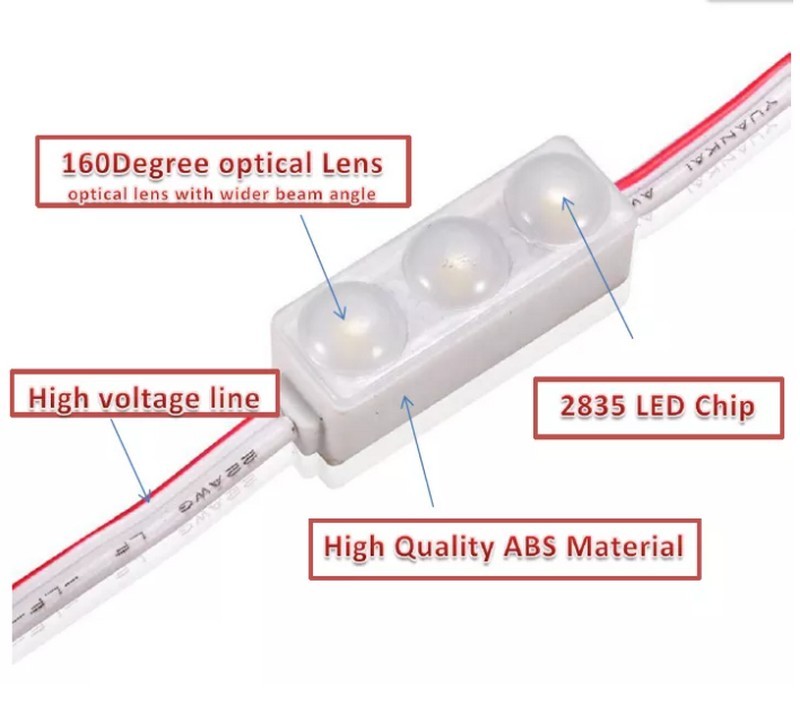

Description

Specification:

Model No. 3UM2835-Mini
Led type SMD2835
Color Warm white/white
Voltage DC12V
Power 0.6W
Luminous Flux 60-70lm
Beam Angle 160°
Electric Current 90 ma
PCB Double-side FR4
Waterproof Grade IP67
Warranty 3 years

mini-size-ultrasonic-injection-2835-smd-samsung-epistar-led-module 5

Application:
1.Lights for fountain, spring, waterfall, pool
2.Decoration lights for furniture: shelf, wardrobe, etc
3.Marine signal and task lighting
4.Architectural outdoor lights
5.Lights for events and show
6.Decoration lights for bar, pub, club, disco
7.Backlight of signage ,Logo and channel letter

mini-size-ultrasonic-injection-2835-smd-samsung-epistar-led-module 4

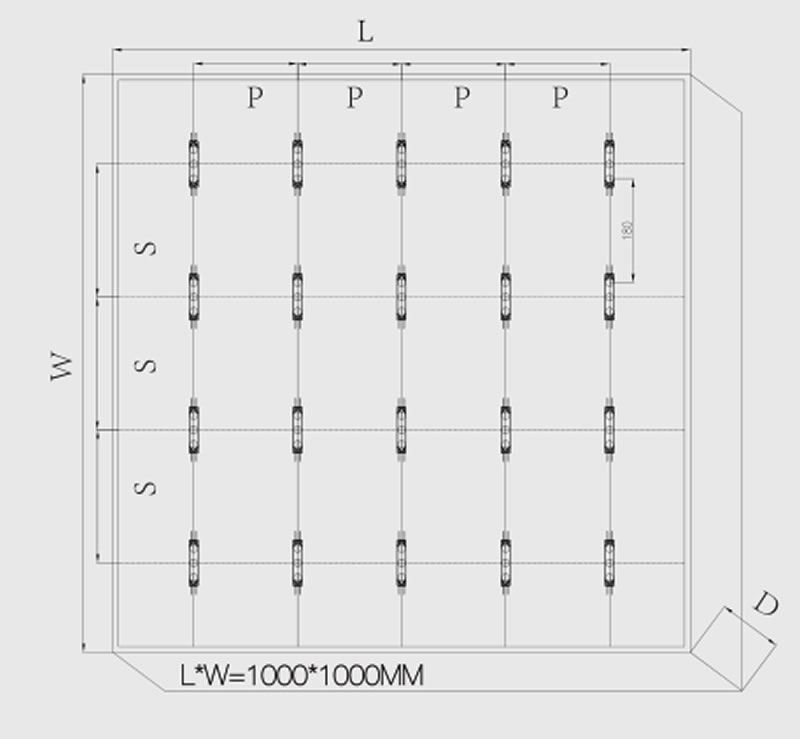

Layout:

mini-size-ultrasonic-injection-2835-smd-samsung-epistar-led-module 6

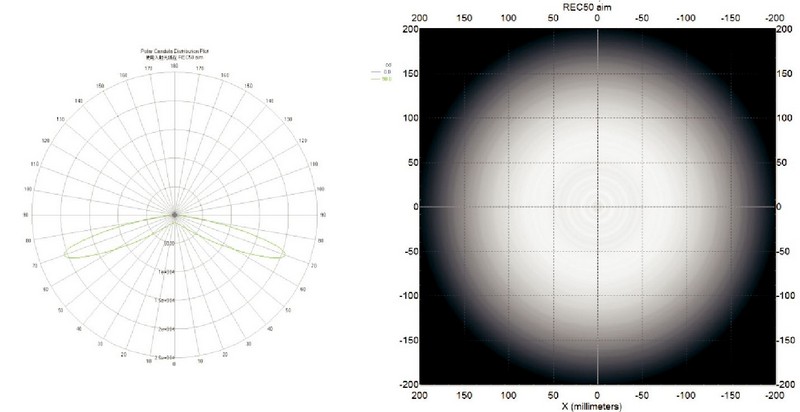

Light distribution curve:

mini-size-ultrasonic-injection-2835-smd-samsung-epistar-led-module 7

Packing & Delivery:

mini-size-ultrasonic-injection-2835-smd-samsung-epistar-led-module 8

mini-size-ultrasonic-injection-2835-smd-samsung-epistar-led-module 9
