Features:

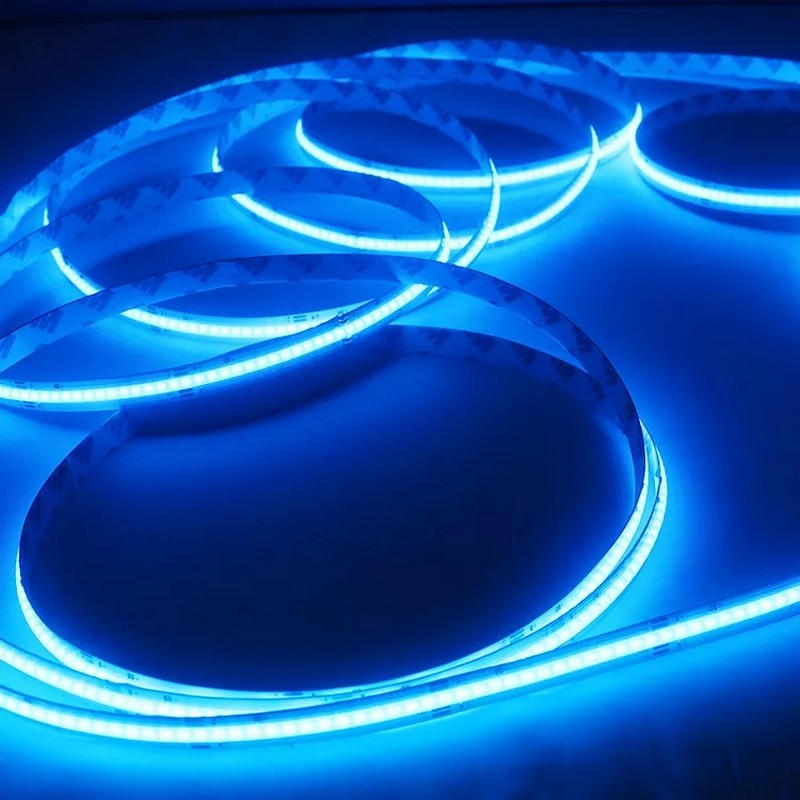

Using mini 0402 LED as light source, and glue on surface to make the lights more evenly and uniform.

Up to 840 LEDs each meter, only 3.57mm distance between same color LEDs.

Double layer FPC, balancing the voltage dropping, heat dissipation and flexibility.

Compatible with most of the RGB controllers in the markets.

Dimensions：

Specifications:

*The above measurements of watts, brightness and efficiency allowance tolerance ±10%.

Temperature Curve:

*The above curves shows the components’ temperatures changes according to the time, after powring within 30 minutes.

*The x-axis shows the time from 1st min to 30th min.

*The y-axis shows the changes of Resistor, PCB, Glue and Room.

Brightness Consistency:
The following charts shows the voltage, lumen and brightness drop on each meter.

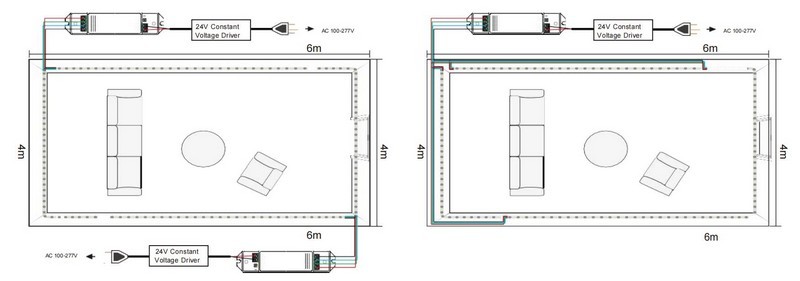

*The recommend running length is 5 meters, for over 5 meters please connect in parallel.

*Make sure of the total watts of COB Strip lights is less than 80% of the power supply’s max output.

*Match the polarities according to the mark (‘+’ and ‘-‘) in the PCB while connecting.

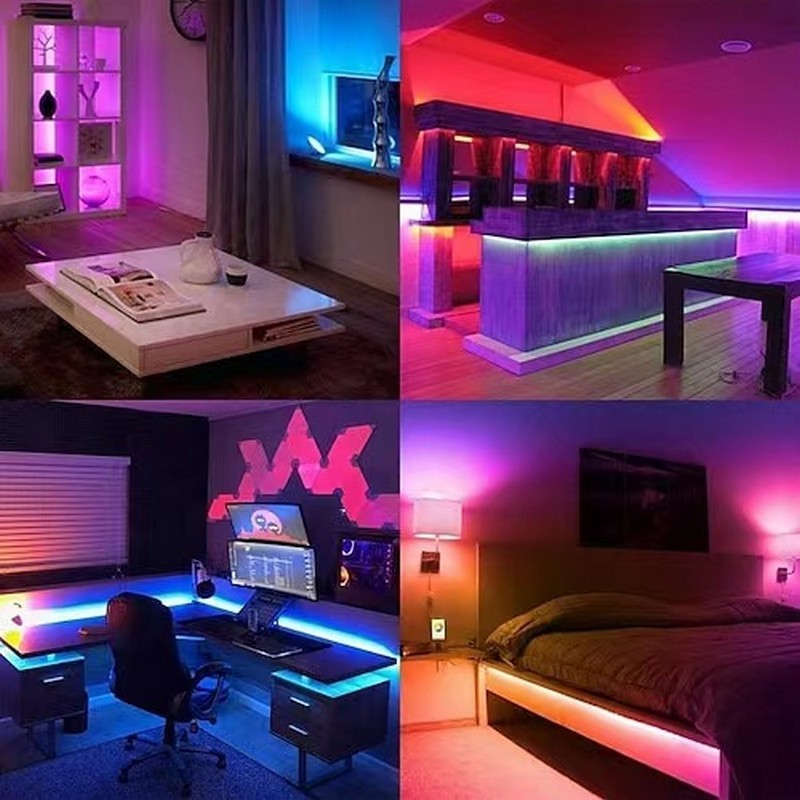

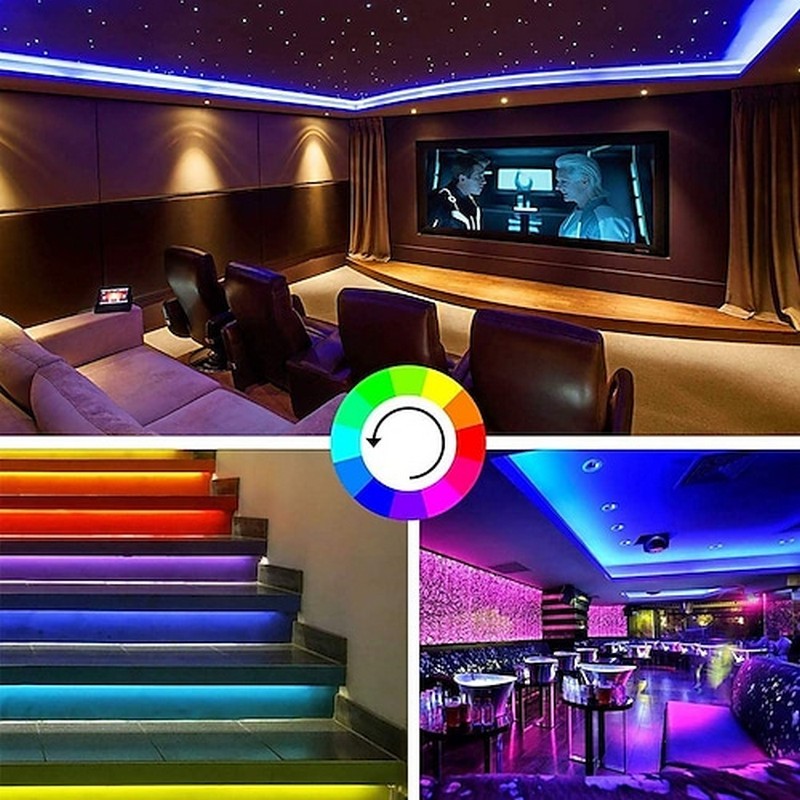

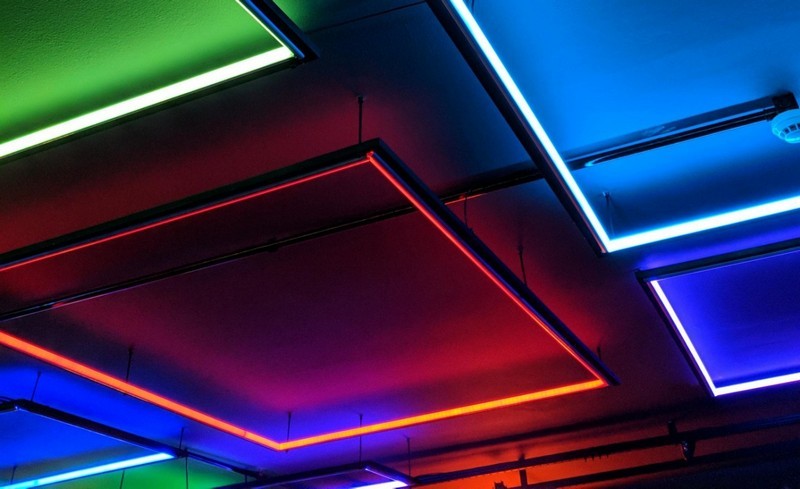

Applications:

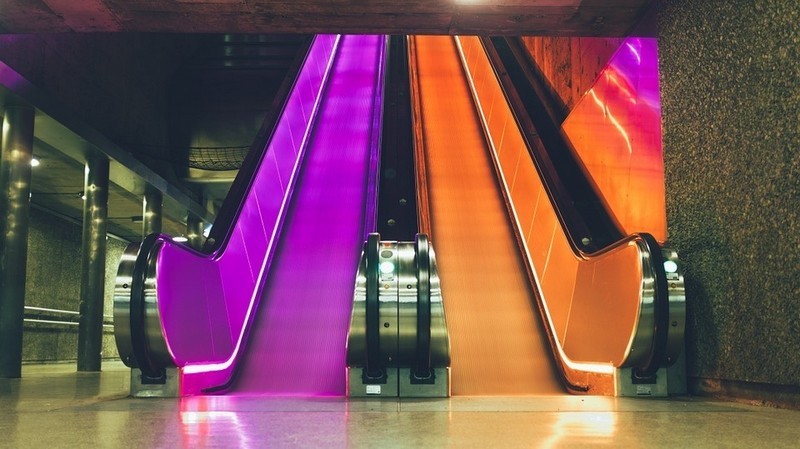

*Residential lighting, decorative lighting.

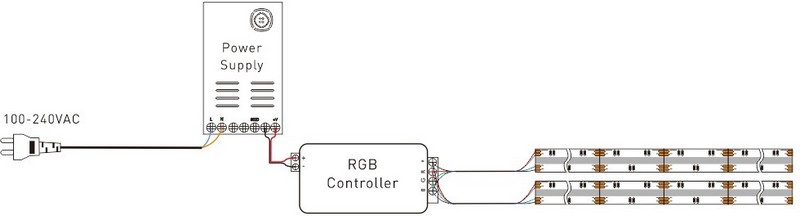

Installation:

Package:

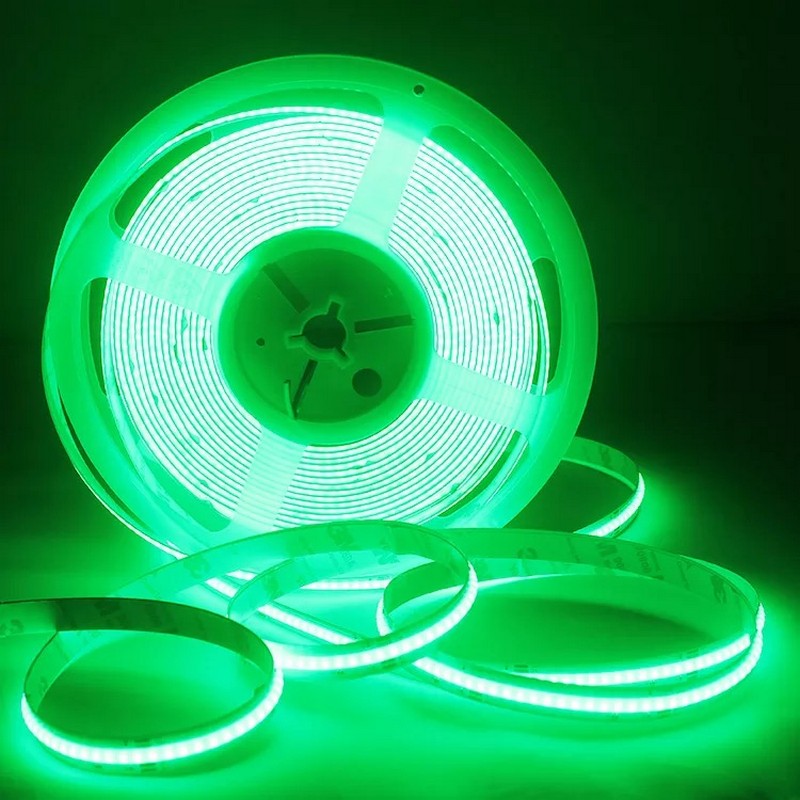

5 meters per roll.

Each roll packed with anti-static bags, and label on it.

25 rolls into a inner box(30cm x 24cm x 26cm).

2 inner boxes into a large carton (50cm*30cm*29cm).
