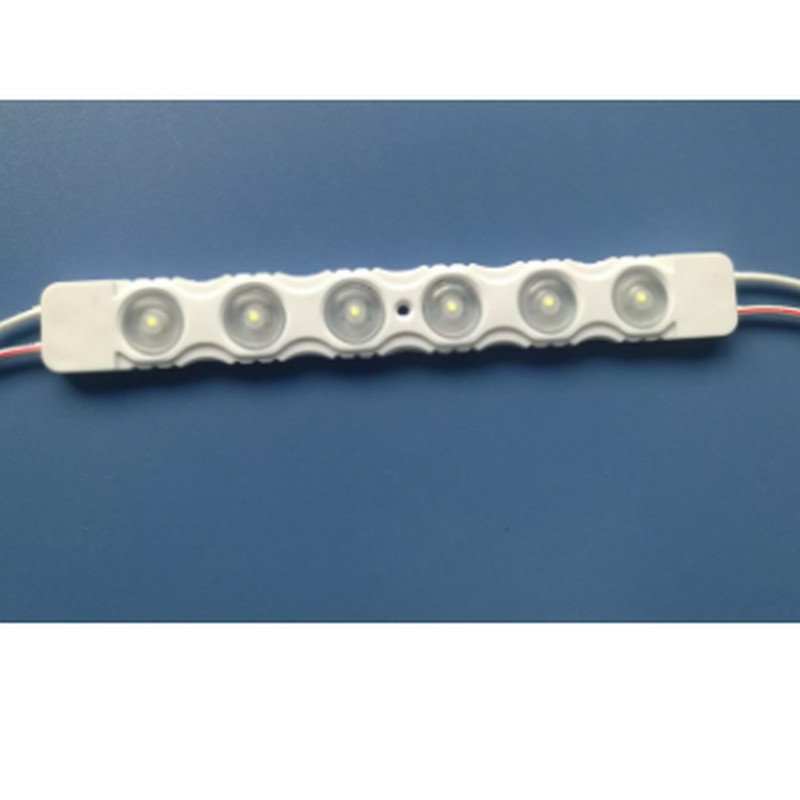

Specification:

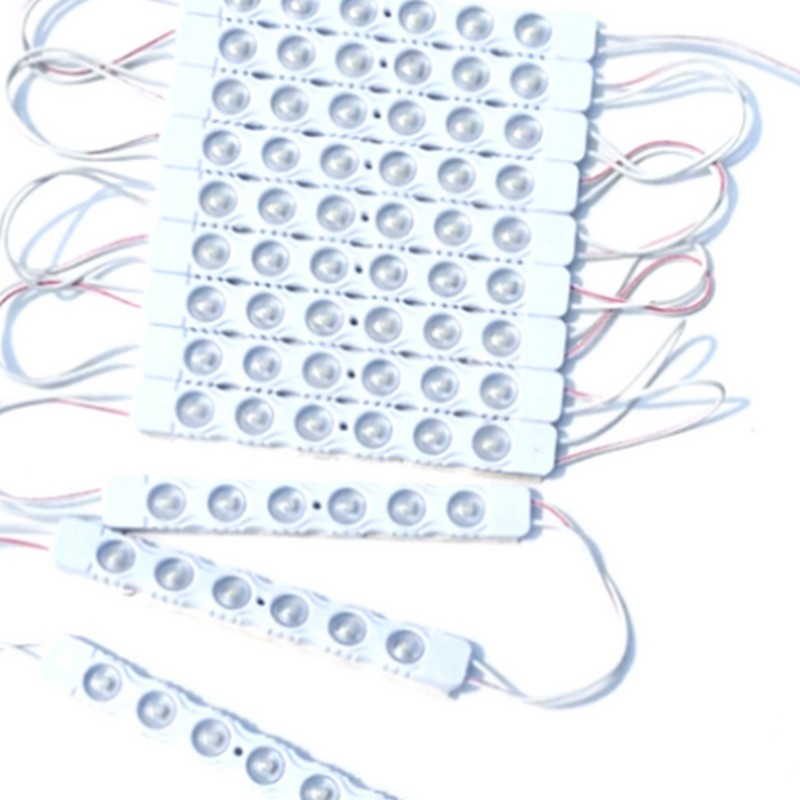

No. | Led module 220V |
Color | Can customize the color |
Color temperature(K) | 8000-10000 |
Angle(degree) | 160 |
Brightness(lm) | 350~450 |
Voltage (V) | AC 220 |
Electric current (mA) | 15~17 |
Power (W) | 3.8 |
Life span(H) | 50000 |
PCB | 2.0mm aluminum pcb |
LED Quantity(S) | 6 |
Size (mm) | 150*19*5 |
Standard cascade (pcs) | 100 |
Ambient temperature (°C) | -25-60 |
Warranty (years) | 2 |
Instruction:
1-No static touch, hot-line work.
2-No need to designate the negative and positive
3-The module is prohibited overload
4-It is strictly prohibited to use the hand to press the LED surface.
5-Do not install the led module with power on

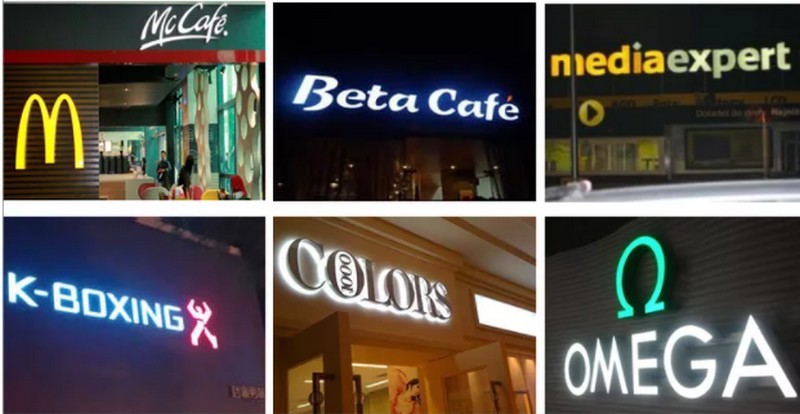

Application:
Best for big light box We recommend: – Box depth:8cm-10cm – Distance between bars:7cm-8cm Box depth can be from 8cm-12cm Quantity for per square meter is based on the depth of light box. Usually it needs about 9 to 16 pcs for per square meter.

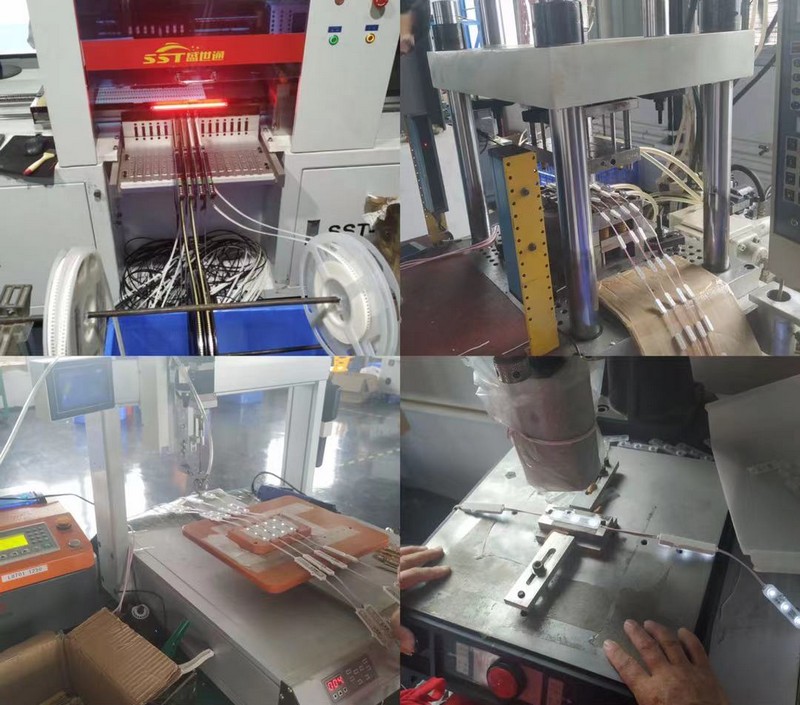

Our production line:

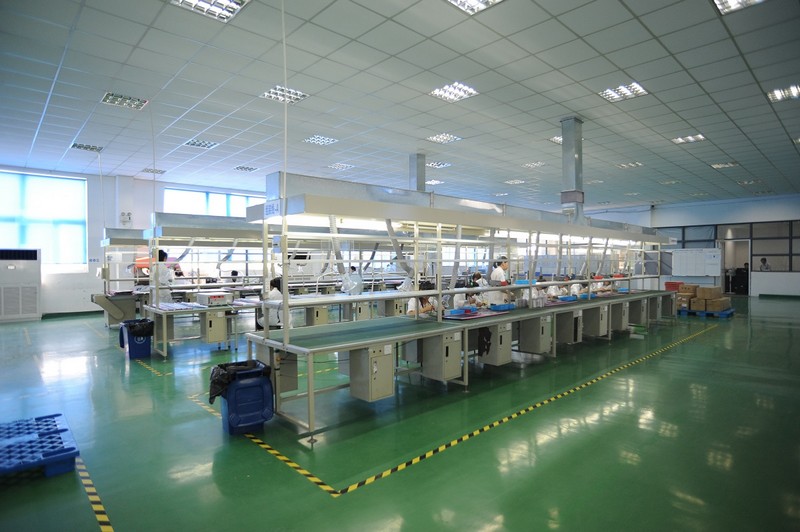

Workshop:

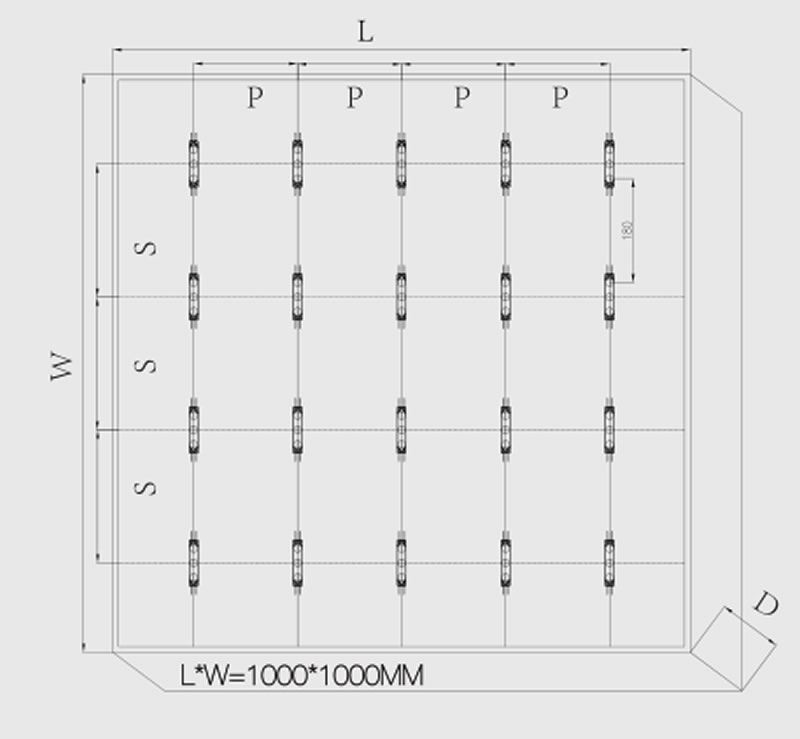

Layout:

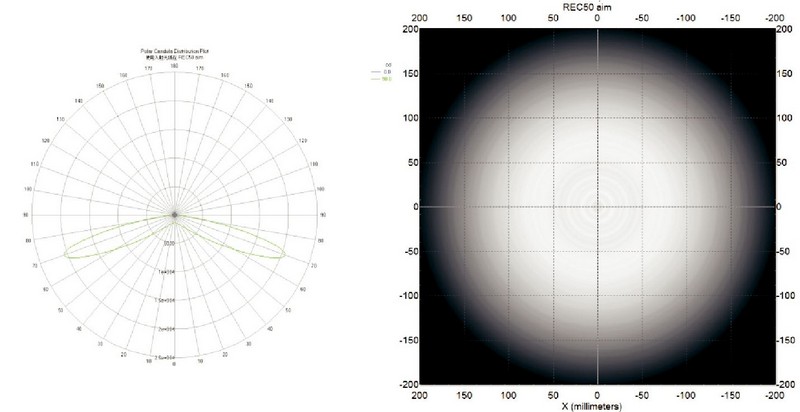

Light distribution:
Packing & Delivery:
